Quick Start

This guide walks you through enabling the MCP (Model Context Protocol) service in Tapdata and integrating it with AI agent tools that support the SSE protocol (e.g., Cursor). It enables real-time delivery of structured contextual data, helping large language models better understand business context.

Prerequisites

• Requires Tapdata Enterprise or Community Edition to be deployed.
• You have an AI model service or tool that supports MCP with SSE protocol (e.g., Cursor or Trae).

Step 1: Set Up User and Get Access Code

To ensure platform security, you need to create and authorize a user account with permission to access data via the MCP protocol.

1. Log in to Tapdata Platform.

2. Go to System Settings > Role Management and create a role named mcp (case-insensitive). See Manage Roles.

3. Navigate to System Settings > User Management, and assign the mcp role to a user account. See Manage Users.

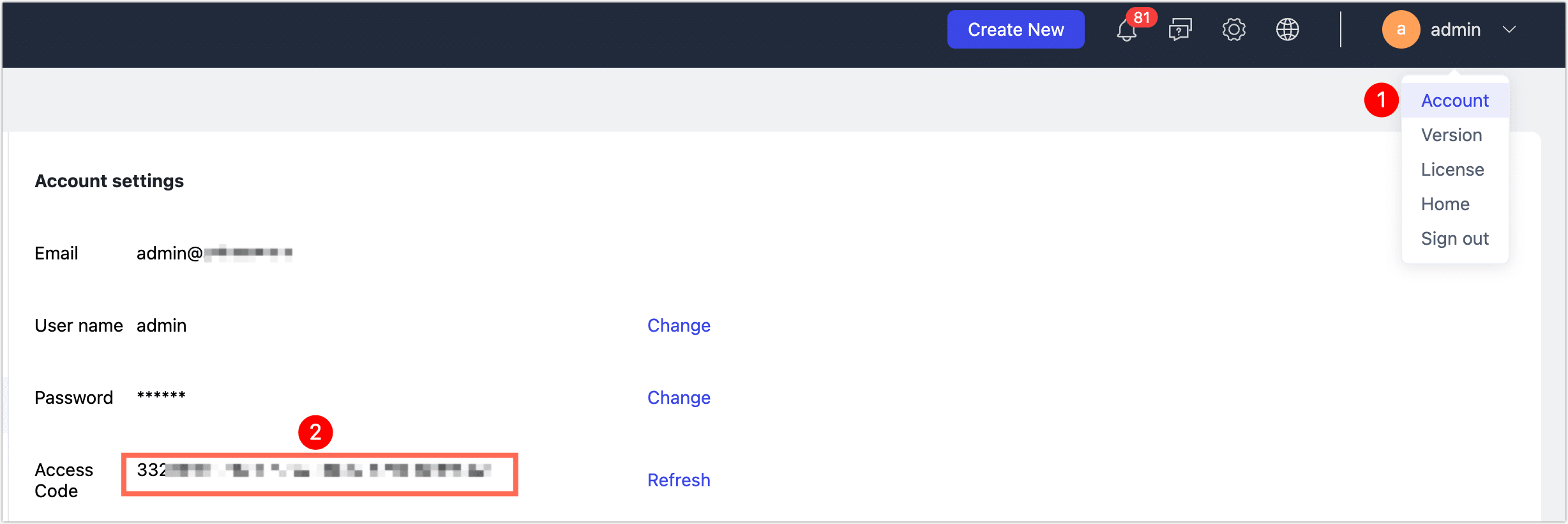

4. Log in to Tapdata using the authorized account, click your username in the top-right corner, and select Account. Copy the Access Code; you’ll need it in the next steps.



Step 2: Configure MCP Server in Agent Tool

Next, we’ll use Cursor as an example to show how to configure and connect to the Tapdata MCP Server:

1. Open and log in to the Cursor app. Click the top-right icon.

2. Click MCP on the left menu, then click Add new global MCP Server.



3. In the mcp.json config file that opens, add the Tapdata MCP service config using the structure below:

   {
     "mcpServers": {
       "mcp-tcp-server": {
         "url": "http://{server}:{port}/mcp/sse?accessCode={accessCode}"
       }
     }
   }

   You only need to modify the url field. Description of the parameters:

   • server: Replace with the domain or IP of your Tapdata platform.
   • port: Replace with the Tapdata service port (default is 3030).
   • accessCode: Replace with the access code obtained in Step 1.

   Example:

   {
     "mcpServers": {
       "mcp-tcp-server": {
         "url": "http://192.168.1.18:3000/mcp/sse?accessCode=3324cf************"
       }
     }
   }

4. Save and close the configuration file. Return to the MCP settings section. When the status light on the left turns green, the connection to Tapdata MCP Server is successful.



5. When you interact with the AI model in Cursor, it will automatically fetch context data from Tapdata MCP Server. You can also guide the model via prompts to help it access data efficiently.

   # Role
   You are a data analysis assistant. Your job is to generate data queries based on user intent and present the results.

   # Task Preparation
   First, retrieve the available database connections (e.g., "E-commerce Materialized View"), then query the schema to understand the data model.

   # Working Directory
   /Users/lg/tmp/worker

   Cursor will recognize the task and execute the following:

   1. Retrieve database connections and data model schemas
   2. Run data queries and aggregation based on the context
   3. Return the final analysis results

Understand Tapdata MCP Server Primitives

Tapdata MCP Server is built on three core primitives: Prompts, Resources, and Tools. These form the foundation for AI models to interact with data systems—allowing them to discover available resources, select appropriate operations, and use prompt templates to retrieve structured context for accurate and efficient reasoning.

Prompts

Prompts are task-specific natural language templates that guide AI models to understand intent, plan execution steps, and generate high-quality responses. Well-crafted prompts significantly improve accuracy and task completion.

Resources

Resources define the data the AI model can access, including database connections and models, helping the model understand data structure and context.

Primitive	Description
Data Connection	Represents database connections in MCP Server. Business tags can be added to describe purpose.
Data Model	Represents schema definitions under a connection, including collection names, fields, and types, helping the model understand data organization.

Tools

Tools are callable functions or commands the model can use to interact with structured data—such as queries, aggregations, and sampling. These tools are automatically discovered and made available through MCP without additional configuration.

Tool Name	Function Description
listConnection	Lists all database connections and their tags
listDataModel	Retrieves all data models under a connection
sampleData	Samples up to 100 records from a model
query	Executes a MongoDB query
aggregate	Performs MongoDB aggregation
count	Returns the total number of documents in a collection
listCollection	Lists all collections in a MongoDB database

tip

The current MCP service supports read-based primitives for contextual data, including structured queries, aggregations, and data sampling. Tapdata will gradually introduce enhanced capabilities such as write support, data publishing APIs, and AI Agent–driven modeling, continuously improving the end-to-end context loop and enabling secure, efficient AI-driven analytics.

FAQ

• Q: MCP Server connection failed—what could be the reason?

  Possible causes include:

  • Incorrect service URL or endpoint
  • Network firewall or security group blocking Tapdata port
  • The access code user lacks the mcp or admin role

• Q: AI inference is delayed or missing data—how to troubleshoot?

  Check for performance bottlenecks in the model backend, slow queries in the data source, or network latency between Tapdata and the model.

• Q: How can I test SSE data connectivity quickly?

  You can use curl or Postman to test Tapdata MCP's SSE endpoint, or use the official MCP Inspector tool to verify real-time payloads.

• Q: My AI Agent only supports STDIO protocol. Can it still use Tapdata MCP?

  Yes. Use the mcp-proxy tool to convert STDIO to SSE and bridge Tapdata MCP Server.
